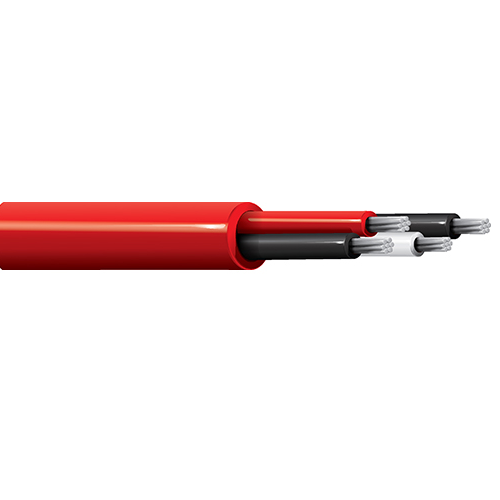

Belden 82743 22 AWG 12 Conductor 7x30 Stranding Tinned Copper 300V Electronic Cable

Description:

High Temperature Electronic, 6 Pair 22AWG (7x30) Tinned Copper, FEP Insulation, PVC Outer Jacket, CMP.

Insulation:

• Material: FEP - Fluorinated Ethylene Propylene
• Nom. Thickness: 0.0065 in (0.17 mm)

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.0145 in (0.368 mm)
• Nom. Diameter: 0.238 in

Standards:

• Voltage Rating: 300 V RMS
• Operating Temperature: 0°C To +75°C
• Nom. Characteristic Impedance: 80 Ohms

Applications:

• indoor plenum applications; low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; voice communications; panel wiring

Specifications:

• Size (AWG): 22
• No. of Conductor: 12
• Stranding: 7x30
• Conductor Material: TC - Tinned Copper
• Part Number: 82743
