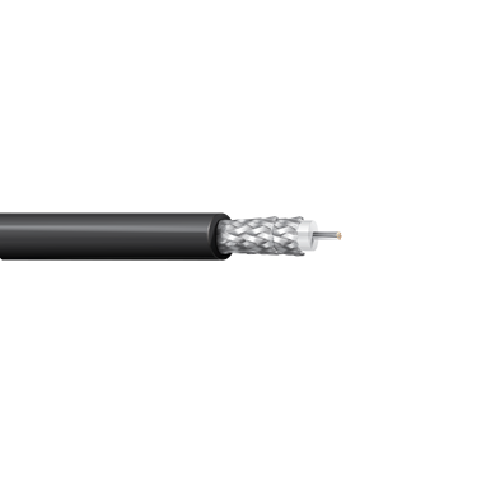

Belden 8268 13 AWG 1 Conductor 7x21 Stranding RG-214 Mil-Spec 50 Ohm Coax Cable

Description:

Mil-Spec Coax, 50 Ohm, RG-214, 13 AWG (7x21) Silvered Copper Conductor, PE Insulation, Double 95% Silvered Copper Braid Shield, PVC Jacket (Non-Contaminating), CMX, Commercial, non-QPL.

Insulation:

• Material: PE - Polyethylene
• Nom. Insulation Diameter: 0.285 in (7.24 mm)

Outer Shield:

• Layer 1: Outer Shield Type Braid, Silvered Copper (SC) Material, Coverage 95%

• Layer 2: Outer Shield Type Braid, Silvered Copper (SC) Material, Coverage 95%

Outer Jacket:

• Material: PVC - Polyvinyl Chloride (Non-Contaminating)
• Nom. Diameter: 0.425 in (10.8 mm)
• Overall Cable Diameter (Nominal): 0.425 in (10.8 mm)

Applications:

• High frequency microwave and satellite, Point-to-point and point-to-multipoint wireless antenna communication
