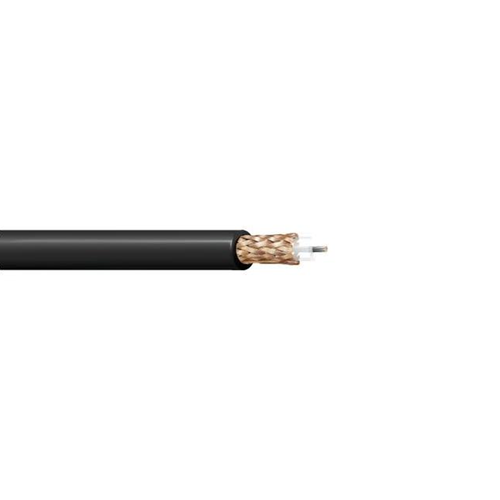

Belden 8261 18 AWG 1 Conductor 7x26 Stranding RG11 Analog Video 75 Ohm Coax Cable

Description:

18 AWG stranded (7x26) 0.048" tinned copper conductor, polyethylene insulation, bare copper braid shield (95% coverage), PVC jacket.

Insulation:

• Material: PE - Polyethylene
• Nom. Insulation Diameter: 0.285 in (7.24 mm)

Outer Shield:

• Outer Shield Type: Braid
• Material: Bare Copper (BC)
• Coverage: 95%

Outer Jacket:

• Material: PVC - Polyvinyl Chloride (Non-Contaminating)
• Nom. Diameter: 0.405 in (10.3 mm)
• Overall Cable Diameter (Nominal): 0.405 in (10.3 mm)

Applications:

• SDI coax
