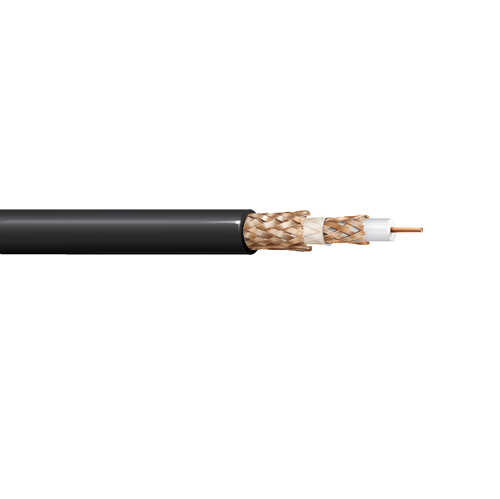

Belden 8233 14 AWG 1 Conductor Solid Bare Copper 600V Video Triax Coax Cable

Description:-

14 AWG solid 0.064" bare copper conductor, gas-injected foam HDPE insulation, bare copper double shields (95% and 80% coverage), polyethylene jacket.

Insulation:-

• Material: PE - Polyethylene (Foam)
• Nom. Insulation Diameter: 0.285 in (7.24 mm)
• Gas Injected

Inner Shield:-

• Shield Type: Braid
• Material: Bare Copper (BC)
• Coverage: 95%

Outer Shield:-

• Shield Type: Braid
• Material: Bare Copper (BC)
• Coverage: 80%

Inner Jacket:-

• Material: PE - Polyethylene
• Nom. Diameter: 0.365 in (9.27 mm)

Outer Jacket:-

• Material: PE - Polyethylene
• Nom. Diameter: 0.475 in (12.1 mm)

Standards:-

• UL Voltage Rating: 600V RMS
• Nom. Characteristic Impedance: 75 Ohm
• Operating Temperature Range: -55°C To +80°C

Applications:-

• Analog Video; Interconnect camera to CCU (camera control unit)

Specifications:-

• Size (AWG): 14
• No. of Conductor: 1
• Stranding: Solid
• Nom. Diameter: 0.0645 in
• RG Type: 11
• Conductor Material: BC - Bare Copper
• Part Number: 8233
