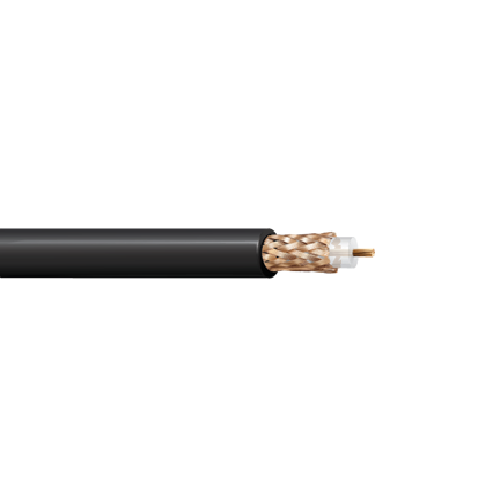

Belden 8218 27 AWG 1 Conductor 7x35 Stranding Analog Video 75 Ohm Coax Cable

Description:

27 AWG stranded (7x35) 0.017" bare copper-covered steel conductor, polyethylene insulation, tinned copper braid shield (95% coverage), PVC jacket..

Insulation:

• Material: PE - Polyethylene
• Nominal Diameter: 0.1 in

Outer Shield:

• Outer Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage [%]: 95%

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.15 in
