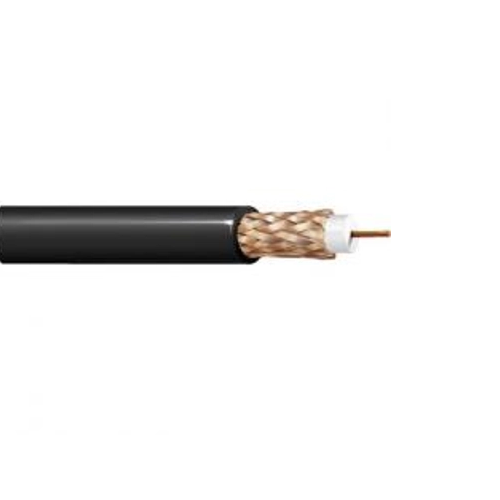

Belden 8212 20 AWG 1 Conductor Solid Bare Copper Covered Steel 300V Analog Video Coax Cable

Description:-

20 AWG solid 0.032" bare copper-covered steel conductor, foam polyethylene insulation, bare copper braid shield (95% coverage), polyethylene jacket.

Insulation:-

• Material: PE - Polyethylene (Foam)
• Nominal Diameter: 0.143 in

Outer Shield:-

• Shield Type: Braid
• Material: Bare Copper (BC)
• Coverage: 95%

Outer Jacket:-

• Material: PE - Polyethylene
• Nom. Diameter: 0.242 in

Standards:-

• UL Voltage Rating: 300 V RMS
• Nominal Characteristic Impedance: 75 Ohm
• Operating Temperature Range: -55°C To +80°C

Specifications:-

• Size (AWG): 20
• No. of Conductor: 1
• Stranding: Solid
• RG Type: 59
• Nominal Diameter: 0.032 in
• Conductor Material: BCCS - Bare Copper Covered Steel
• Part Number: 8212
