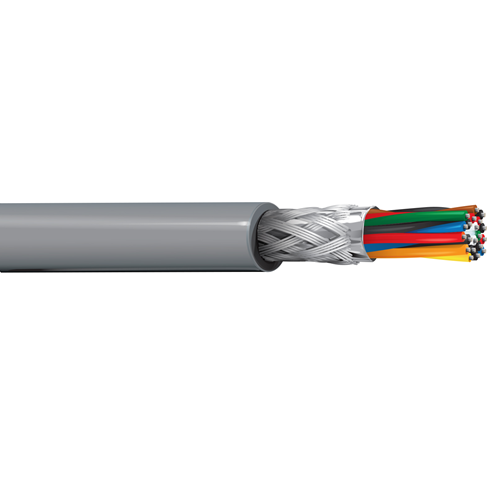

Belden 8110 24 AWG 10 Pair 7x32 Stranding Tinned Copper 300V Computer EIA RS-232/422 Cable

Description:

Computer EIA RS-232/422 Cable, 24 AWG stranded (7x32) tinned copper conductors, Datalene insulation, twisted pairs, overall Beldfoil (100% coverage) + tinned copper braid shield (65% coverage), 24 AWG stranded tinned copper drain wire, PVC jacket.

Insulation:

• Material: PE - Polyethylene (Foam)
• Nom. Thickness: 0.013 in (0.33 mm)
• Nom. Insulation Diameter: 0.049 in (1.2 mm)

Outer Shield:

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 24 AWG (7x32) TC - Tinned Copper

• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 65%

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.035 in (0.89 mm)
• Nom. Diameter: 0.427 in (10.8 mm)
• Overall Cable Diameter (Nominal): 0.427 in (10.8 mm)

Standards:

• Impedance: 100 Ohm
• Operating Temperature: -30°C to +80°C
• Voltage Rating: 300 V (CM), 30 V (UL AWM 2919)

Applications:

• rs-232 extended distance applications; rs-422 applications; computer communications; low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; panel wiring

Specifications:

• Size (AWG): 24
• No. of Pair: 10
• Stranding: 7x32
• Conductor Material: TC - Tinned Copper
• Part Number: 8110
