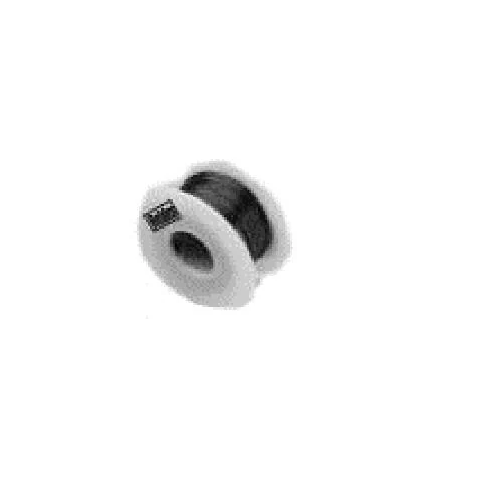

Belden 8058 36 AWG 1 Conductor Solid Bare Copper Magnet Wire

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Belden 8058 36 AWG 1 Conductor Solid Bare Copper Magnet Wire

Description:-

Magnet Wire, 36 AWG (Solid) Bare Copper, PUR/NYL Insulation.

Insulation:-

• Material: PUR/Nylon - Polyurethane + Nylon
• Nom. Thickness: 0.0004 in (0.010 mm)
• Nom. Insulation Diameter: 0.0058 in (0.15 mm)
• Overall Cable Diameter (Nominal): 0.006 in (0.15 mm)

Standards:-

• Breakdown Voltage: 1075 V Minimum (at Room Temperature)

Applications:-

• Solderable magnet wire

Specifications:-

• Size (AWG): 36
• No. of Conductors: 1
• Stranding: Solid
• Conductor Material: BC - Bare Copper
• Part Number: 8058
