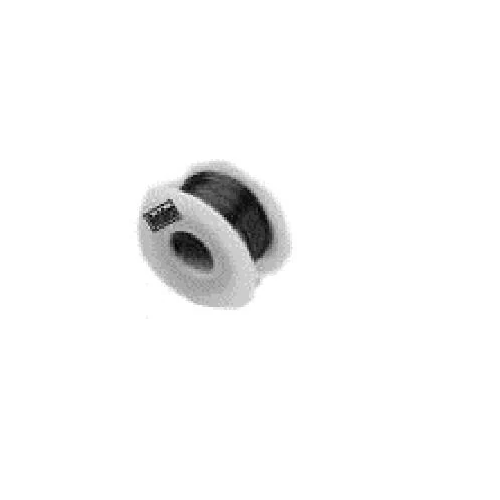

Belden 8052 24 AWG 1 Conductor Solid Bare Copper Magnet Wire

Description:-

Magnet Wire, 24 AWG (Solid) Bare Copper, PUR/NYL Insulation.

Insulation:-

• Material: PUR/Nylon - Polyurethane + Nylon
• Nom. Thickness: 0.001 in (0.025 mm)
• Nom. Insulation Diameter: 0.0217 in (0.551 mm)
• Overall Cable Diameter (Nominal): 0.022 in (0.56 mm)

Standards:-

• Breakdown Voltage: 2425 V Minimum (at Room Temperature)

Applications:-

• Solderable magnet wire

Specifications:-

• Size (AWG): 24
• No. of Conductors: 1
• Stranding: Solid
• Conductor Material: BC - Bare Copper
• Part Number: 8052
