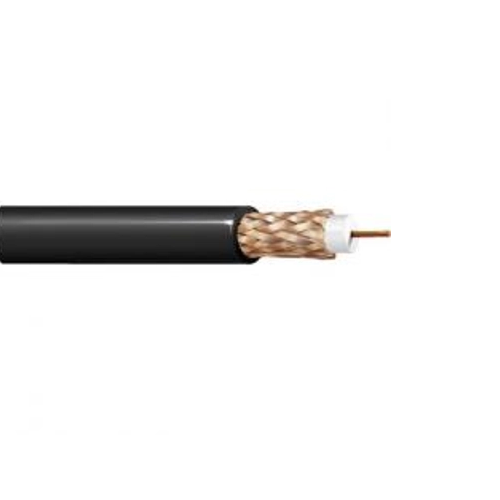

Belden 7985LC 18 AWG 1 Conductor Solid Bare Copper 300V Surveillance CCTV Coax Cable

Description:-

Surveillance and CCTV Cable, RG6, Plenum-CMP-FHC 25/50, 18 AWG bare copper foam FEP core, 95% bare copper braid, FEP jacket.

Insulation:-

• Material: FEP - Fluorinated Ethylene Propylene (Foam)
• Nominal Diameter: 0.17 in
• Material Trade Name: Teflon

Outer Shield:-

• Shield Type: Braid
• Material: Bare Copper (BC)
• Coverage: 95%

Outer Jacket:-

• Material: FEP - Fluorinated Ethylene Propylene
• Nom. Diameter: 0.228 in
• Material Trade Name: Teflon

Standards:-

• UL Voltage Rating: 300 V RMS
• Nominal Characteristic Impedance: 75 Ohm
• Operating Temperature Range: -40°C To +200°C

Applications:-

• Surveillance, CCTV Camera

Specifications:-

• Size (AWG): 18
• No. of Conductor: 1
• Stranding: Solid
• RG Type: 6
• Nominal Diameter: 0.04 in
• Conductor Material: BC - Bare Copper
• Part Number: 7985LC
