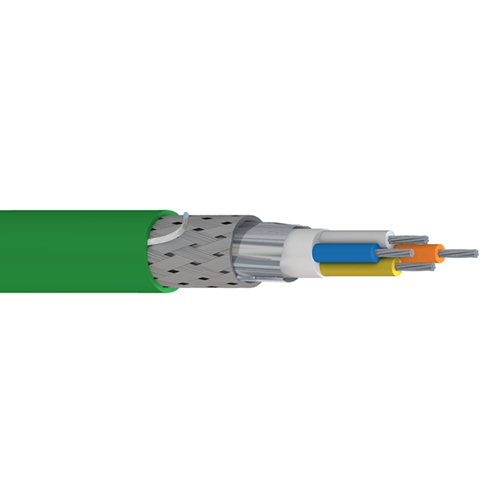

Belden 7961A 22 AWG 2 Pair 7x30 Stranding Tinned Copper Cat 5e CMG DataTuff Cable

Description:

Industrial Ethernet Cat 5e, 1 Quad (2 Pair) 22 AWG (7x30) Tinned copper, PO Insulation, Overall Belfoil+Tinned Copper Braid (85%) Shield, PVC Outer Jacket, CMG CMX-Outdoor.

Insulation:

• Material: PO - Polyolefin

Inner Jacket:

• Material: LSZH - Low Smoke Zero Halogen (Flame Retardant)
• Nom. Diameter: 0.164 in (4.17 mm)

Outer Shield:

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%

• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 85%

• Overall Beldfoil (aluminum laminate) and a tinned copper braid shield (85% coverage), providing excellent protection against EMI/RFI.

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.272 in (6.91 mm)
• Overall Cable Diameter (Nominal): 0.272 in (6.91 mm)

Standards:

• Operating Temperature: -40°C To +80°C
• Voltage Rating: 300 V (CMG, CMX-Outdoor), 600 V (AWM 21047)

Applications:

• PROFINET, outdoor, harsh environment, IIoT, factory or process automation, IP cameras and devices, data communication, etc.
