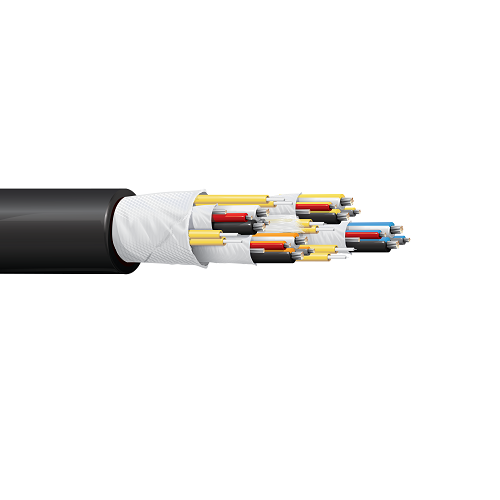

Belden 7844R 24 AWG 8 Conductor 18 AWG 8 Conductor 8 Fiber 4 Channel SMPTE Stadium Cable

Description:-

4-Channel SMPTE Stadium Cable, 8 Single Mode Fiber, 8 TC Conductor (19x30) 18 AWG and 8 TC Conductor (7x32) 24 AWG, PVC Insulation, Beldfoil Shield, PVC Jacket, Riser.

Insulation:-

• Material: PVC

Product Overview:-

• Product Category: SMPTE Cable
• Suitable Applications: 4 Channel Composite Camera Cable

Outer Jacket:-

• Nom. Diameter: 0.510 in (13.0 mm)

Standards:-

• Operating Temperature Range: -20°C to 60°C

Specifications:-

• Size (AWG): 24
• No. of Conductors: 8
• Stranding: 7x32
• Conductor Material: TC - Tinned Copper

• Size (AWG): 18
• No. of Conductors: 8
• Stranding: 19x30
• Conductor Material: TC - Tinned Copper

• Fiber Count: 8
• Fibers Per Subunit: 1
• Fiber Type: OS2, G.657.A2
• Fiber Buffer Material: PVC - Polyvinyl Chloride
• Fiber Buffer Diameter: 900 µm
• Part Number: 7844R
