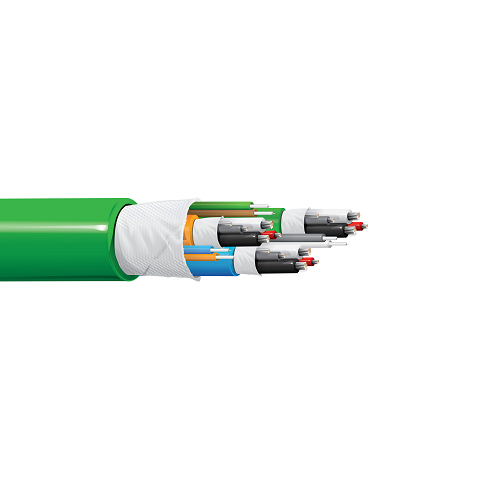

Belden 7834P 24 AWG 6 Conductor 18 AWG 6 Conductor 6 Fiber 3 Channel SMPTE Stadium Cable

Description:-

3-Channel SMPTE Stadium Cable, 6 Single Mode Fiber, 6 TC Conductor (19x30) 18 AWG and 6 TC Conductor (7x32) 24 AWG, FEP Insulation, Beldfoil Shield, PVDF Jacket, Plenum.

Insulation:-

• Material: FEP

Product Overview:-

• Product Category: SMPTE Cable
• Suitable Applications: 3 Channel Composite Camera Cable

Outer Jacket:-

• Nom. Diameter: 0.437 in (11.1 mm)

Standards:-

• Operating Temperature Range: 0°C to 75°C

Specifications:-

• Size (AWG): 24
• No. of Conductors: 6
• Stranding: 7x32
• Conductor Material: TC - Tinned Copper

• Size (AWG): 18
• No. of Conductors: 6
• Stranding: 19x30
• Conductor Material: TC - Tinned Copper

• Single Mode Fiber: 6
• Fibers Per Subunit: 1
• Fiber Type: OS2, G.657.A2
• Fiber Buffer Material: PVC - Polyvinyl Chloride
• Fiber Buffer Diameter: 900 µm
• Part Number: 7834P
