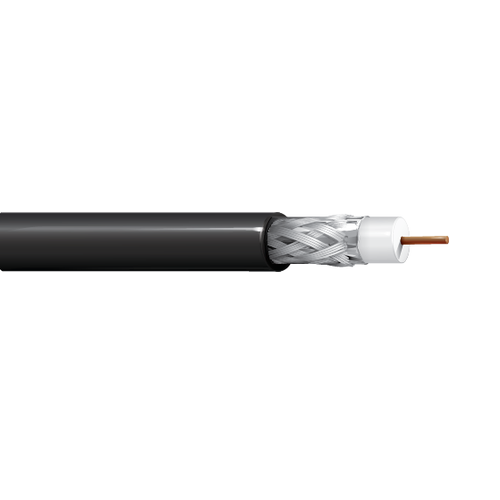

Belden 7810SB 10 AWG 1 Conductor Solid Bare Copper Covered Aluminum 300V Wireless Transmission Coax Cable

Description:-

50 Ohm Wireless Transmission Coax, RF 400, 10 AWG Solid Bare Copper Covered Aluminum, PE Insulation, Duobond Foil + 95% Tinned Copper Braid Shield, LSZH Jacket, CMG-LS/CMR, Shipboard ABS Type Approved.

Insulation:-

• Material: PE - Polyethylene
• Nom. Insulation Diameter: 0.285 in (7.24 mm)
• Gas Injected

Outer Shield:-

• Layer: 1
• Shield Type: Tape
• Material: Tri-Laminate (Alum+Poly+Alum)
• Coverage: 100%
• Outer Shield Trade Name: Duofoil

• Layer: 2
• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 95%

Outer Jacket:-

• Material: LSZH - Low Smoke Zero Halogen (Flame Retardant)
• Nom. Diameter: 0.405 in (10.3 mm)
• Overall Nominal Diameter: 0.405 in (10.3 mm)

Standards:-

• UL Voltage Rating: 300 V RMS
• Nom. Characteristic Impedance: 50 Ohm
• Operating Temperature Range: -30°C To +75°C

Applications:-

• Point-to-point and point-to-multipoint wireless antenna communication; Wireless microphones, Two-Way Radios, Amateur (Ham) Radio, Low Power FM, GPS, RFID (Radio Frequency Identification); ABS approved for marine shipboard and offshore use

Specifications:-

• Size (AWG): 10
• No. of Conductor: 1
• Stranding: Solid
• Nom. Diameter: 0.108 in
• RG Type: 8
• Conductor Material: BCCA - Bare Copper Covered Aluminum
• Part Number: 7810SB
