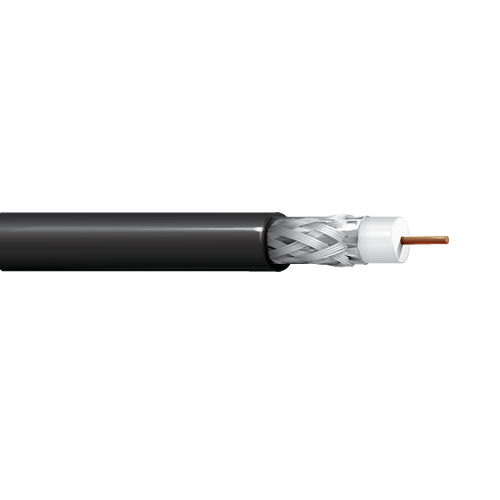

Belden 7809A 13 AWG 1 Conductor Solid Bare Copper 300V RF 300 Wireless Coax Cable

Description:-

Intermediate type, RF 300, 13 AWG solid 0.072" bare copper conductor, gas-injected foam HDPE insulation, Duobond II, tinned copper braid shield (95% coverage), polyethylene jacket.

Insulation:-

• Material: PE - Polyethylene (Foam)
• Nominal Diameter: 0.19 in
• Gas Injected

Outer Shield:-

• Layer: 1
• Shield Type: Tape
• Material: Tri-Laminate (Alum+Poly+Alum)
• Coverage: 100%
• Material Trade Name: Duofoil

• Layer: 2
• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 95%

Outer Jacket:-

• Material: PE - Polyethylene
• Nominal Diameter: 0.3 in

Standards:-

• UL Voltage Rating: 300 V RMS
• Nominal Characteristic Impedance: 50 Ohm
• Operating Temperature Range: -40°C To +75°C

Specifications:-

• Size (AWG): 13
• No. of Conductor: 1
• Stranding: Solid
• Nominal Diameter: 0.072 in
• Conductor Material: BC - Bare Copper
• Part Number: 7809A
