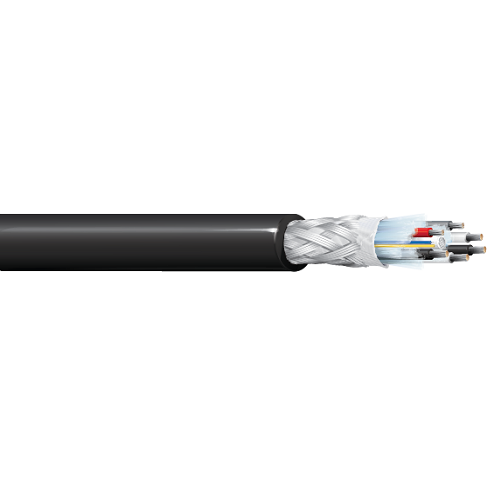

Belden 7804PX 24 AWG 2 Conductor 20 AWG 4 Conductor 2 Fiber Industry Standard SMPTE 311M Cable

Description:-

Industry Standard SMPTE 311M Cable, 2 Single Mode Fibers, 2 TC Conductors 24 AWG (7x32) and 4 TC Conductors 20 AWG (19x32), PVC Insulation, TC Braid Shield (95% coverage), PVDF Jacket, Indoor/Outdoor CMP.

Product Overview:-

• Product Category: SMPTE Cable
• Suitable Applications: Indoor/Outdoor, Broadcast, Studios, SMPTE 311

Insulation:-

• Material: FEP

Outer Jacket:-

• Nom. Diameter: 0.249 in (6.32 mm)

Standards:-

• Operating Temperature Range: -20°C to 75°C

Specifications:-

• Size (AWG): 24
• No. of Conductors: 2
• Stranding: 7x32
• Conductor Material: TC - Tinned Copper

• Size (AWG): 20
• No. of Conductors: 4
• Stranding: 19x32
• Conductor Material: TC - Tinned Copper

• Fiber Count: 2
• Fiber Type: OS2, G.657.A2
• Fiber Buffer Diameter: 900 µm
• Part Number: 7804PX
