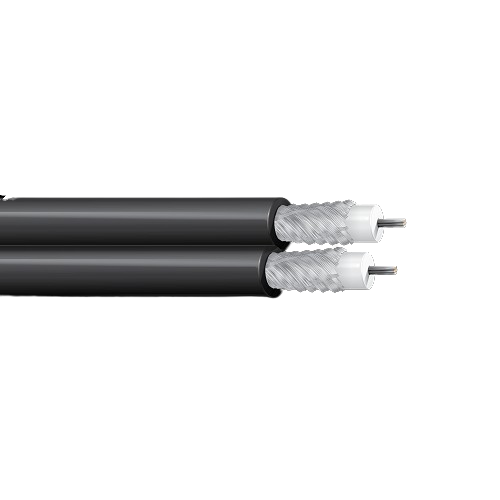

Belden 7700A 30 AWG 2 Conductor 7x38 Stranding Tinned Copper 300V Analog Video Coax Cable

Description:-

75 Ohm Analog Video Coax, Dual Ultra-miniature RG-59, 30 AWG (7x38) Tinned Copper Conductors, FEP Insulation, 95% Tinned Copper French Braid Inner Shields, Flamarrest Jacket, CMP, Flexible.

Insulation:-

• Material: PFA - Perfluoroalkoxy (Foam)
• Nom. Insulation Diameter: 0.053 in (1.3 mm)

Inner Shield:-

• Shield Type: French Braid
• Material: Tinned Copper (TC)
• Coverage: 95%

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.107 x .215 in
• Overall Cable Diameter (Nominal): 0.107 in (2.72 mm)

Standards:-

• UL Voltage Rating: 300 V
• Nom. Characteristic Impedance: 75 Ohm
• Operating Temperature Range: -20°C to +60°C

Applications:-

• S-Video, Standard analog video

Specifications:-

• Size (AWG): 30
• No. of Conductor: 2
• Stranding: 7x38
• Nom. Diameter: 0.012 in
• RG Type: Ultra-miniature 59
• Conductor Material: TC - Tinned Copper
• Part Number: 7700A
