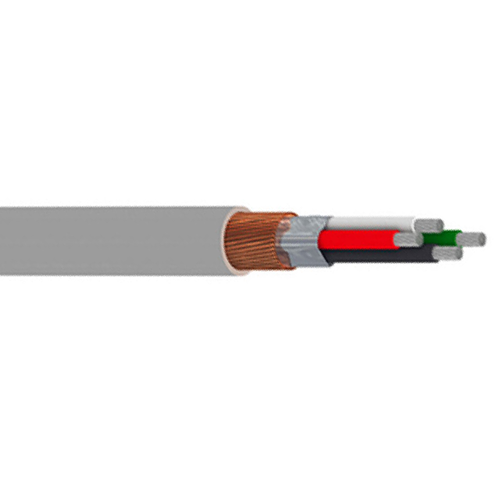

Belden 76004WS 28 AWG 4 Conductor 7x36 Stranding Tinned Copper 300V Multi-Conductor Cable

Description:

MachFlex for High Flex, 4 Conductor 28 AWG (7x36) Tinned Copper, SRPVC Insulation, Overall Beldfoil+Tinned Copper Serve (90%) Shield, PVC Outer Jacket, CMG

Insulation:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.010 in (0.25 mm)
• Nom. Insulation Diameter: 0.035 in (0.89 mm)

Outer Shield:

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 26 AWG (7x34) TC - Tinned Copper

• Shield Type: Spiral Serve / Screen
• Material: Tinned Copper (TC)
• Coverage: 90%

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.040 in (1.0 mm)
• Nom. Diameter: 0.190 in
• Overall Cable Diameter (Nominal): 0.190 in (4.83 mm)
• Separator: Paper Tape

Standards:

• Voltage Rating: 300 V (CSA AWM I/II A/B), 300 V (AWM 2661)
• Operating Temperature: -10°C To 105°C (Static), 5°C To 105°C (Flexing)

Applications:

• Robotics, Robot, Continuous Flex

Specifications:

• Size (AWG): 28
• No. of Conductor: 4
• Stranding: 7x36
• Conductor Material: TC - Tinned Copper
• Part Number: 76004WS
