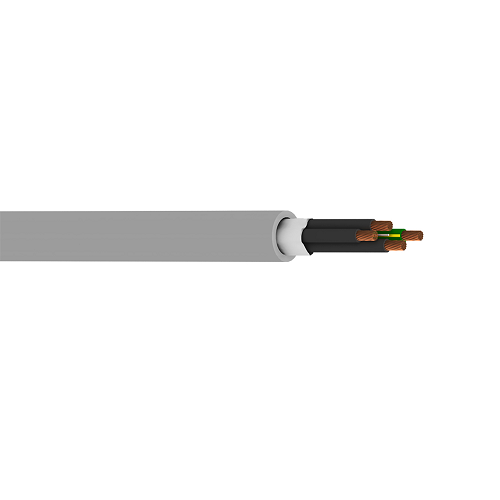

Belden 7423W 16 AWG 3 Conductor 1 Ground Wire 26x30 Stranding 600V Flex Cable

Description:-

MachFlex for High Flex, 3+1G Conductor 16 AWG (26x30) Bare Copper, PVC-NYL Insulation, TPE Outer Jacket, 1000V WTTC, 600V TC-ER.

Insulation:-

Element: Conductor(s)
• Material: PVC/Nylon - Polyvinyl Chloride + Nylon
• Nom. Thickness: 0.021 in (0.53 mm)
• Nom. Insulation Diameter: 0.101 in (2.57 mm)

Element: Ground Wire
• Material: PVC/Nylon - Polyvinyl Chloride + Nylon
• Nom. Thickness: 0.021 in (0.53 mm)
• Nom. Insulation Diameter: 0.101 in (2.57 mm)

Outer Jacket:-

• Material: TPE - Thermoplastic Elastomer
• Nom. Thickness: 0.047 in (1.2 mm)
• Nom. Diameter: 0.342 in (8.69 mm)
• Overall Cable Diameter (Nominal): 0.342 in (8.69 mm)
• Separator: non-Woven Tape

Standards:-

• Operating Temperature Range: -40°C to +90°C
• Voltage Rating: (WTTC), 600 V (TC-ER, UL AWM 20328)

Applications:-

• Robotics, Robot, Continuous Flex

Specifications:-

Element: Conductor(s)
• Size (AWG): 16
• No. of Conductor: 3
• Stranding: 26x30
• Conductor Material: BC - Bare Copper

Element: Ground Wire
• Size (AWG): 16
• No. of Ground Wire: 1
• Stranding: 26x30
• Conductor Material: BC - Bare Copper
• Part Number: 7423W
