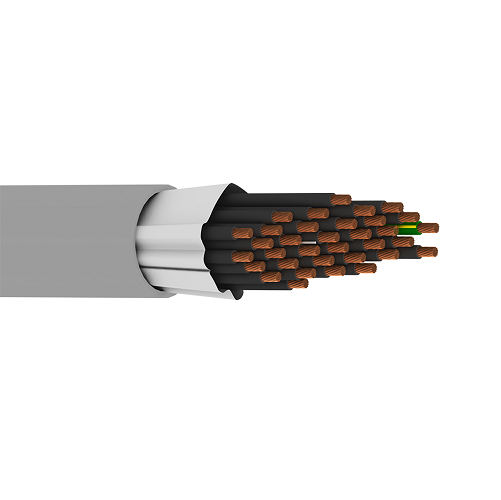

Belden 7418W 18 AWG 33 Conductor 1 Ground Wire 16x30 Stranding 600V Flex Cable

Description:-

MachFlex for High Flex, 33+1G Conductor 18 AWG (16x30) Bare Copper, PVC-NYL Insulation, TPE Outer Jacket, 1000V WTTC, 600V TC-ER.

Insulation:-

Element: Conductor(s)
• Material: PVC/Nylon - Polyvinyl Chloride + Nylon
• Nom. Thickness: 0.021 in (0.53 mm)
• Nom. Insulation Diameter: 0.089 in (2.3 mm)

Element: Ground Wire
• Material: PVC/Nylon - Polyvinyl Chloride + Nylon
• Nom. Thickness: 0.021 in (0.53 mm)
• Nom. Insulation Diameter: 0.089 in (2.3 mm)

Outer Jacket:-

• Material: TPE - Thermoplastic Elastomer
• Nom. Thickness: 0.063 in (1.6 mm)
• Nom. Diameter: 0.762 in
• Overall Cable Diameter (Nominal): 0.762 in
• Separator: non-Woven Tape

Standards:-

• Voltage Rating: 1000 V RMS, 600 V RMS

Applications:-

• Robotics, Robot, Continuous Flex

Specifications:-

Element: Conductor(s)
• Size (AWG): 18
• No. of Conductor: 33
• Stranding: 16x30
• Conductor Material: BC - Bare Copper

Element: Ground Wire
• Size (AWG): 18
• No. of Ground Wire: 1
• Stranding: 16x30
• Conductor Material: BC - Bare Copper
• Part Number: 7418W
