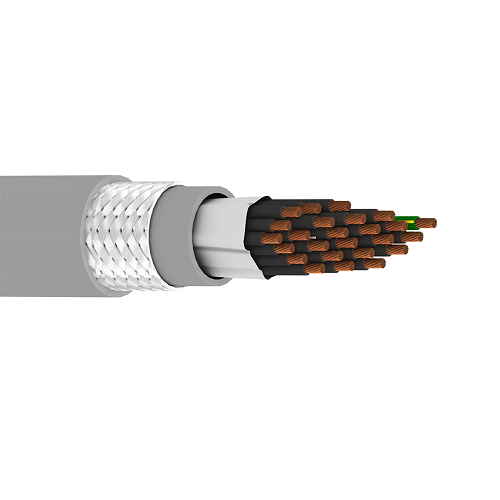

Belden 7408WS 20 AWG 24 Conductor 1 Ground Wire 19x32 Stranding 600V Flex Cable

Description:-

MachFlex for High Flex, 24+1G Conductor 20 AWG (19x32) Bare Copper, PVC Insulation, Overall Tinned Copper Braid (85%) Shield, TPE Outer Jacket, PLTC.

Insulation:-

Element: Conductor(s)
• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.015 in (0.38 mm)
• Nom. Insulation Diameter: 0.066 in (1.7 mm)

Element: Ground Wire
• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.015 in (0.38 mm)
• Nom. Insulation Diameter: 0.066 in (1.7 mm)

Outer Shield:-

• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage [%]: 87%

Inner Jacket:-

• Material: TPE - Thermoplastic Elastomer
• Nom. Thickness: 0.25 in (6.4 mm)
• Nom. Diameter: 0.461 in (11.7 mm)
• Separator: non-Woven Tape

Outer Jacket:-

• Material: TPE - Thermoplastic Elastomer
• Nom. Thickness: 0.053 in (1.3 mm)
• Nom. Diameter: 0.595 in
• Overall Cable Diameter (Nominal): 0.595 in

Standards:-

• Voltage Rating: 600 V
• Operating Temperature Range: -40°C To 105°C

Specifications:-

Element: Conductor(s)
• Size (AWG): 20
• No. of Conductor: 24
• Stranding: 19x32
• Conductor Material: BC - Bare Copper

Element: Ground Wire
• Size (AWG): 20
• No. of Ground Wire: 1
• Stranding: 19x32
• Conductor Material: BC - Bare Copper
• Part Number: 7408WS
