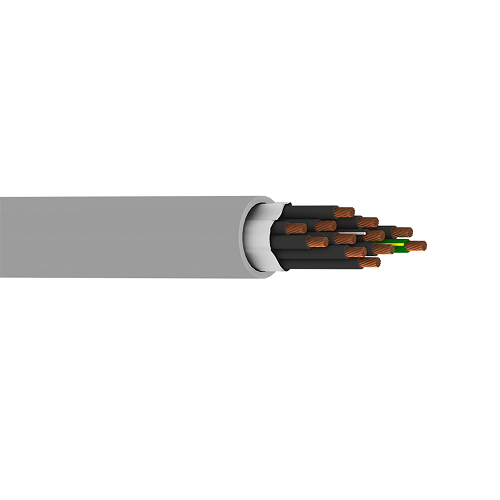

Belden 7406W 20 AWG 11 Conductor 1 Ground Wire 19x32 Stranding 600V Flex Cable

Description:-

MachFlex for High Flex, 11+1G Conductor 20 AWG (19x32) Bare Copper, PVC Insulation, TPE Outer Jacket, PLTC.

Insulation:-

Element: Conductor(s)
• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.015 in (0.38 mm)
• Nom. Insulation Diameter: 0.066 in (1.7 mm)

Element: Ground Wire
• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.015 in (0.38 mm)
• Nom. Insulation Diameter: 0.066 in (1.7 mm)

Outer Jacket:-

• Material: TPE - Thermoplastic Elastomer
• Nom. Thickness: 0.042 in (1.1 mm)
• Nom. Diameter: 0.363 in
• Separator: non-Woven Tape

Standards:-

• Voltage Rating: 600 V
• Operating Temperature Range: Flexing: -40°C (-5°C Flexing) To +90°C

Specifications:-

Element: Conductor(s)
• Size (AWG): 20
• No. of Conductor: 11
• Stranding: 19x32
• Conductor Material: BC - Bare Copper

Element: Ground Wire
• Size (AWG): 20
• No. of Ground Wire: 1
• Stranding: 19x32
• Conductor Material: BC - Bare Copper
• Part Number: 7406W
