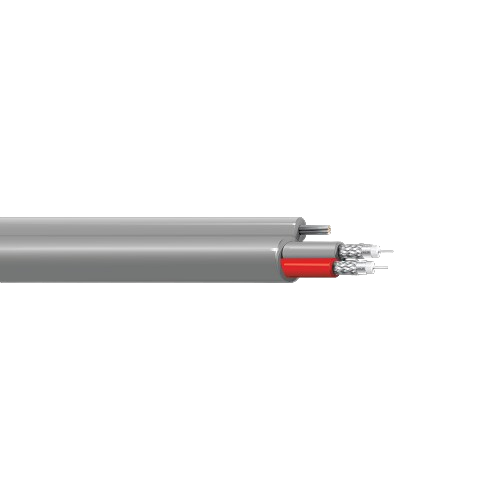

Belden 735O2T 26 AWG 2 Conductor Solid Silvered Copper 300V DS3/DS4 Central Office Coax Cable

Description:-

DS3/DS4 Central Office Coax, 2 Coaxes, Sub-miniature RG-59, 26 AWG, Solid Silvered Copper Conductor, PE Insulation, Foil + 95% Tinned Copper Braid Shields, PVC Inner and Outer Jackets, Tracer Wire, CMR.

Insulation:-

• Material: PE - Polyethylene (Foam)
• Nom. Insulation Diameter: 0.077 in (2.0 mm)

Inner Shield:-

• Layer: 1
• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Material Trade Name: Beldfoil

• Layer: 2
• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 95%

Inner Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.129 in (3.28 mm)
• One red, one gray

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Outer Jacket 1 Table Notes: 0.308 in x 0.179 in, 22 AWG tracer wire on side

Standards:-

• UL Voltage Rating: 300 V (CMR, CMG)
• Nom. Characteristic Impedance: 75 Ohm
• Operating Temperature Range: -20°C to +75°C

Applications:-

• Central office wiring, DS3/DS4 interconnect, 734/735 telecommunications systems, switchboard communications

Specifications:-

• Size (AWG): 26
• No. of Conductor: 2
• Stranding: Solid
• RG Type: Sub-miniature 59
• Nom. Diameter: 0.016 in
• Conductor Material: SC - Silvered Copper
• Part Number: 735O2T
