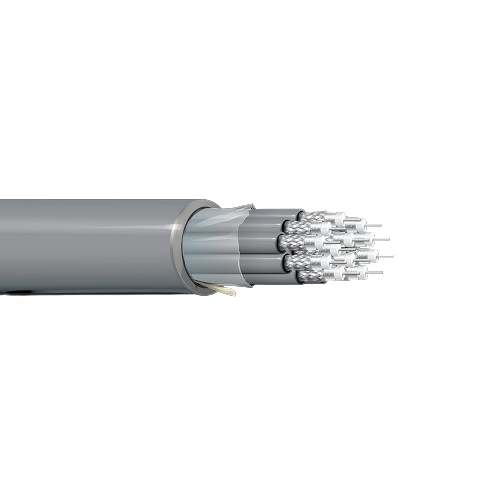

Belden 735C12 25 AWG 12 Conductor Solid Silvered Copper 300V DS3/DS4 Central Office Coax Cable

Description:-

DS3/DS4 Central Office Coax, 12 Coaxes, Sub-miniature RG-59, 25H AWG Solid Silvered Copper Conductor, PE Insulation, Foil + 95% Tinned Copper Braid Shield, PVC Inner and Outer Jackets, CMR

Insulation:-

• Material: PE - Polyethylene (Foam)
• Nom. Insulation Diameter: 0.077 in (2.0 mm)

Inner Shield:-

• Layer: 1
• Shield Type: Tape
• Material: Tri-Laminate (Alum+Poly+Alum)
• Coverage: 100%
• Material Trade Name: Duofoil

• Layer: 2
• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 95%

Inner Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.134 in (3.40 mm)
• Each jacket is gray and numbered

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.608 in (15.4 mm)
• Overall Cable Diameter (Nominal): 0.608 in (15.4 mm)

Standards:-

• UL Voltage Rating: 300 V (CMR, CMG)
• Nom. Characteristic Impedance: 75 Ohm
• Operating Temperature Range: -40°C to +75°C

Applications:-

• Central office wiring, DS3/DS4 interconnect, 734/735 telecommunications systems, switchboard communications

Specifications:-

• Size (AWG): 25
• No. of Conductor: 12
• Stranding: Solid
• Nom. Diameter: 0.017 in
• RG Type: Sub-miniature 59
• Conductor Material: SC - Silvered Copper
• Part Number: 735C12
