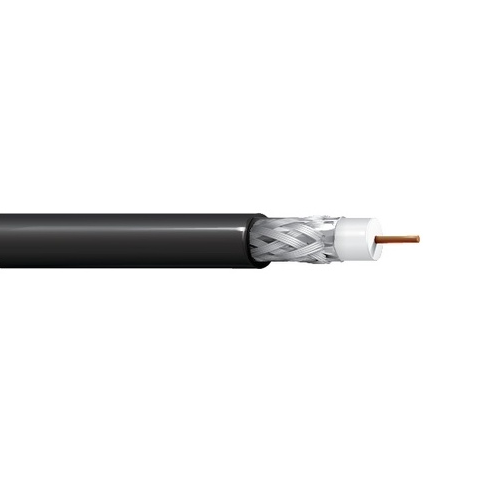

Belden 735C1 25 AWG 1 Conductor Solid Silvered Copper Covered Steel 300V DS-3 and DS-4 Coax Cable

Description:-

25H AWG solid 0.017" silver-plated copper conductors, foam HDPE insulation, Duobond (100% coverage) plus a tinned copper braid shield (95% coverage), inner PVC jackets, overall PVC jacket

Insulation:-

• Material: PE - Polyethylene (Foam)
• Nominal Diameter: 0.077 in

Inner Shield:-

• Layer: 1
• Shield Type: Tape
• Material: Tri-Laminate (Alum+Poly+Alum)
• Coverage: 100%
• Material Trade Name: Duobond

• Layer: 2
• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 95%

• Tape bonded to dielectric

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.134 in

Standards:-

• UL Voltage Rating: 300 V RMS
• Nominal Characteristic Impedance: 75 Ohm
• Operating Temperature Range: -40°C To +75°C

Applications:-

• Central Office wiring for DS3 transmissions

Specifications:-

• Size (AWG): 25
• No. of Conductor: 1
• Stranding: Solid
• Nominal Diameter: 0.017 in
• Conductor Material: SCCS - Silvered Copper Covered Steel
• Part Number: 735C1
