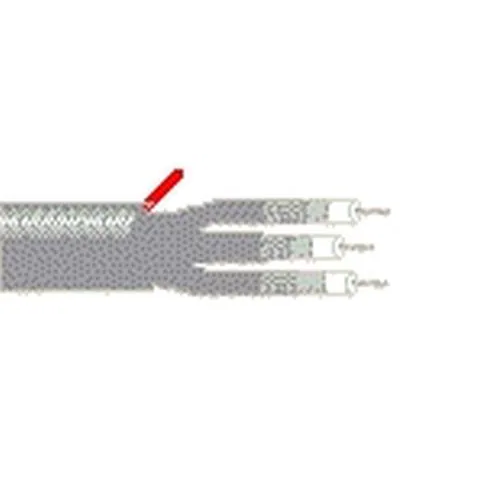

Belden 735A3 26 AWG 3 Conductor Solid Silvered Copper Covered Steel 300V Coax Cable

Description:

26 AWG solid 0.016" silver-plated copper conductor(s), foam HDPE insulation, Beldfoil; tinned copper braid shield (95% coverage), PVC jacket.

Insulation:

• Material: PE - Polyethylene (Foam)
• Nominal Diameter: 0.077 in

Inner Shield:

• Layer: 1
• Outer Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Material Trade Name: Beldfoil
• Coverage: 100%

• Layer: 2
• Outer Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 95%

Inner Jacket:

• Material: PVC - Polyvinyl Chloride
• Nominal Diameter: 0.129 in

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.320 in

Standards:

• Voltage Rating: 300 V RMS
• Operating Temperature: -40°C To +75°C
• Nom. Characteristic Impedance: 75 Ohm

Specifications:

• Size (AWG): 26
• No. of Conductor: 3
• Stranding: Solid
• Nom. Diameter: 0.016 in
• Conductor Material: SCCS - Silvered Copper Covered Steel
• Part Number: 735A3
