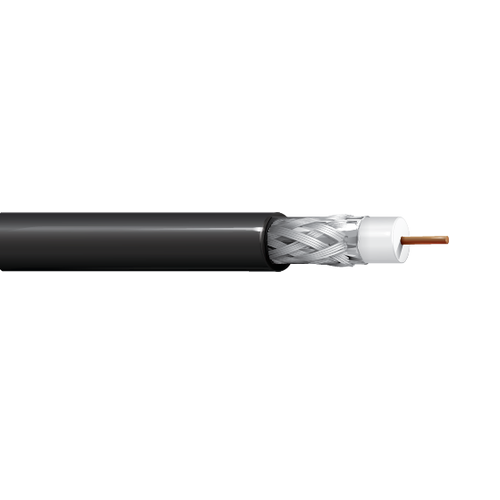

Belden 735A1 26 AWG 1 Conductor Solid Silvered Copper Covered Steel 300V DS-3 and DS-4 Coax Cable

Description:-

26 AWG solid 0.016" (0.40mm) silver-plated copper conductor(s), foam HDPE insulation, Beldfoil; tinned copper braid shield (95% coverage), PVC jacket.

Insulation:-

• Material: PE - Polyethylene (Foam)
• Nominal Diameter: 0.077 in

Outer Shield:-

• Layer: 1
• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Material Trade Name: Beldfoil

• Layer: 2
• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 95%

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.129 in

Standards:-

• UL Voltage Rating: 300 V RMS
• Nominal Characteristic Impedance: 75 Ohm
• Operating Temperature Range: -40°C To +75°C

Specifications:-

• Size (AWG): 26
• No. of Conductor: 1
• Stranding: Solid
• RG Type: Mini 59
• Nominal Diameter: 0.016 in
• Conductor Material: SCCS - Silvered Copper Covered Steel
• Part Number: 735A1
