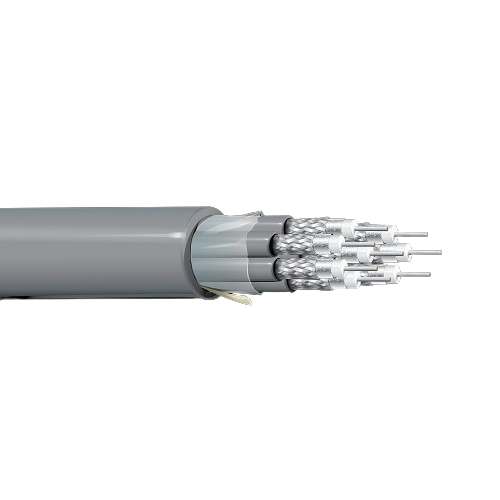

Belden 734C6 20 AWG 6 Conductor Solid Silvered Copper 300V DS3/DS4 Central Office Coax Cable

Description:-

DS3/DS4 Central Office Coax, 6 Coaxes, RG-59, 20 AWG Solid Silvered Copper Conductor, PE Insulation, Foil + 85% Tinned Copper Braid Shields, PVC Inner and Outer Jackets, CMR.

Insulation:-

• Material: PE - Polyethylene (Foam)
• Nom. Insulation Diameter: 0.148 in (3.76 mm)
• Gas Injected

Inner Shield:-

• Layer: 1
• Shield Type: Tape
• Material: Tri-Laminate (Alum+Poly+Alum)
• Coverage: 100%
• Material Trade Name: 20 AWG (7x28) TC - Tinned Copper

• Layer: 2
• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 85%

• Tape bonded to dielectric

Inner Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.235 in (5.97 mm)

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.777 in (19.7 mm)
• Overall Cable Diameter (Nominal): 0.777 in (19.7 mm)

Standards:-

• UL Voltage Rating: 300 V RMS
• Nom. Characteristic Impedance: 75 Ohm
• Operating Temperature Range: -40°C To +75°C

Applications:-

• Central office wiring, DS3/DS4 interconnect, 734/735 telecommunications systems, switchboard communications

Specifications:-

• Size (AWG): 20
• No. of Conductor: 6
• Stranding: Solid
• Nom. Diameter: 0.032 in
• Conductor Material: SC - Silvered Copper
• Part Number: 734C6
