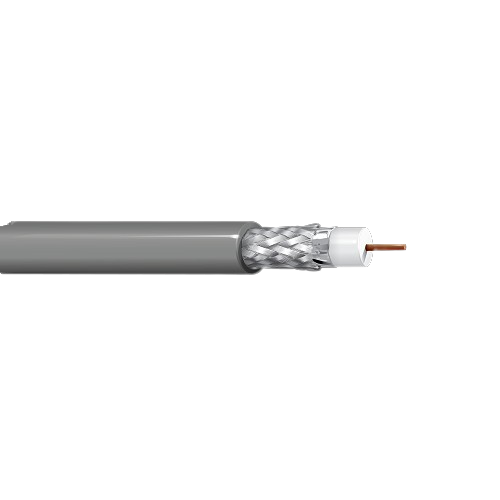

Belden 734A1P 20 AWG 1 Conductor Solid Bare Copper 300V DS3/DS4 Central Office Coax Cable

Description:-

DS3/DS4 Central Office Coax, RG-59, 20 AWG Solid Bare Copper Conductor, FEP Insulation, Foil + 85% Tinned Copper Braid Shield, Flamarrest Jacket, CMP.

Insulation:-

• Material: FEP - Fluorinated Ethylene Propylene (Foam)
• Nom. Insulation Diameter: 0.148 in (3.76 mm)

Outer Shield:-

• Layer: 1
• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Material Trade Name: Beldfoil

• Layer: 2
• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 85%

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.213 in (5.41 mm)

Standards:-

• UL Voltage Rating: 300 V (CMP)
• Nom. Characteristic Impedance: 75 Ohm
• Operating Temperature Range: 0°C to +75°C

Applications:-

• Central office wiring, DS3/DS4 interconnect, 734/735 telecommunications systems, switchboard communications

Specifications:-

• Size (AWG): 20
• No. of Conductor: 1
• Stranding: Solid
• Nom. Diameter: 0.032 in
• RG Type: 59
• Conductor Material: BC - Bare Copper
• Part Number: 734A1P
