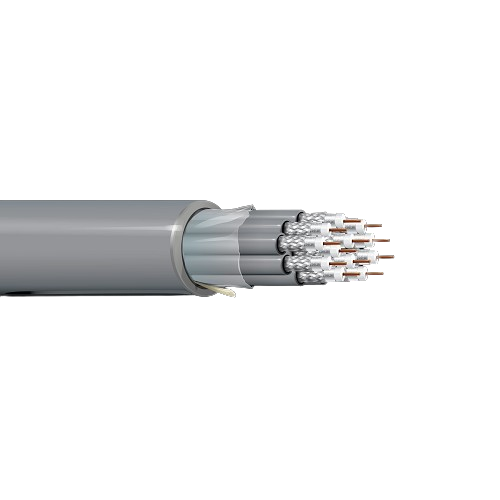

Belden 734A12 20 AWG 12 Conductor Solid Bare Copper 300V DS3/DS4 Central Office Coax Cable

Description:-

DS3/DS4 Central Office Coax, 12 Coaxes, RG-59, 20 AWG Solid Bare Copper Conductor, PE Insulation, Foil + 85% Tinned Copper Braid Shields, PVC Inner and Outer Jackets, CMR.

Insulation:-

• Material: PE - Polyethylene (Foam)
• Nom. Insulation Diameter: 0.148 in (3.76 mm)

Inner Shield:-

• Layer: 1
• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Material Trade Name: Beldfoil

• Layer: 2
• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 85%

Inner Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.235 in (5.97 mm)
• Each jacket is gray and numbered

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 1.07 in (27.2 mm)

Standards:-

• UL Voltage Rating: 300 V (CMR, CMG)
• Nom. Characteristic Impedance: 75 Ohm
• Operating Temperature Range: -30°C to +75°C

Applications:-

• Central office wiring, DS3/DS4 interconnect, 734/735 telecommunications systems, switchboard communications

Specifications:-

• Size (AWG): 20
• No. of Conductor: 12
• Stranding: Solid
• RG Type: 59
• Nom. Diameter: 0.032 in
• Conductor Material: BC - Bare Copper
• Part Number: 734A12
