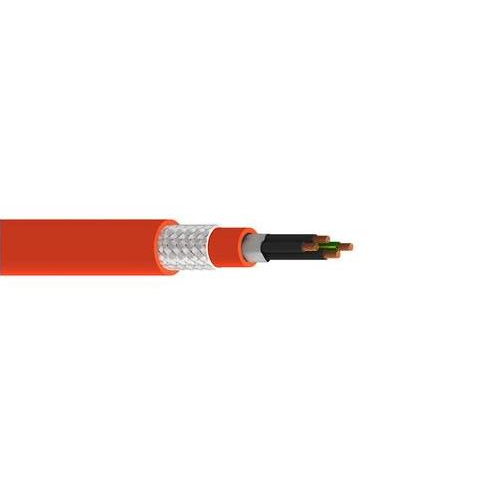

Belden 7136WS 14 AWG 3 Conductor 1 Ground Wire 259x38 Stranding 600V Flex Cable

Description:-

MachFlex for High Flex, 3+1G Conductor 14 AWG (259(7x37)x38) Bare Copper, PVC-NYL Insulation, Overall Tinned Copper Braid (85%) Shield, TPE Inner Jacket, TPE Outer Jacket, 1000V WTTC, 600V TC-ER.

Insulation:-

Element: Conductor(s)
• Material: PVC/Nylon - Polyvinyl Chloride + Nylon
• Nom. Thickness: 0.021 in (0.53 mm)
• Nom. Insulation Diameter: 0.122 in (3.10 mm)

Element: Ground Wire
• Material: PVC/Nylon - Polyvinyl Chloride + Nylon
• Nom. Thickness: 0.021 in (0.53 mm)
• Nom. Insulation Diameter:  0.122 in (3.10 mm)

Outer Shield:-

• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 85%

Inner Jacket:-

• Material: TPE - Thermoplastic Elastomer
• Nom. Thickness: 0.030 in (0.76 mm)
• Nom. Diameter: 0.360 in (9.14 mm)
• Separator: non-Woven Tape

Outer Jacket:-

• Material: TPE - Thermoplastic Elastomer
• Nom. Thickness: 0.053 in (1.3 mm)
• Nom. Diameter: 0.488 in
• Overall Cable Diameter (Nominal): 0.488 in

Standards:-

• Voltage Rating: 1000 V (WTTC), 600 V (TC-ER)
• Operating Temperature Range: Flexing: -40°C To 105°C

Specifications:-

Element: Conductor(s)
• Size (AWG): 14
• No. of Conductor: 3
• Stranding: 259x38
• Conductor Material: BC - Bare Copper

Element: Ground Wire
• Size (AWG): 14
• No. of Ground Wire: 1
• Stranding: 259x38
• Conductor Material: BC - Bare Copper
• Part Number: 7136WS
