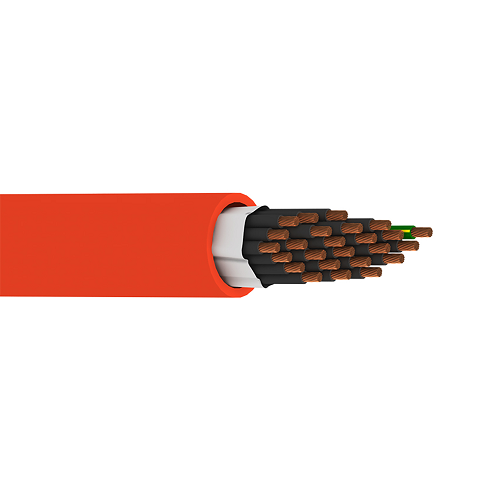

Belden 7129WS 16 AWG 24 Conductor 1 Ground Wire 168x38 Stranding 600V Flex Cable

Description:-

MachFlex for High Flex, 24+1G Conductor 16 AWG (168(7x24) x38) Bare Copper, PVC-NYL Insulation, Overall Tinned Copper Braid (85%) Shield, TPE Inner Jacket, TPE Outer Jacket, 1000V WTTC, 600V TC-ER.

Insulation:-

• Material: PVC/Nylon - Polyvinyl Chloride + Nylon
• Nom. Thickness: 0.109 in (2.77 mm)

Outer Shield:-

• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 85%

Inner Jacket:-

• Material: TPE - Thermoplastic Elastomer
• Nom. Thickness: 0.025 in (0.64 mm)

Outer Jacket:-

• Material: TPE - Thermoplastic Elastomer
• Nom. Diameter: 0.918 in
• Nom. Thickness: 0.083 in (2.1 mm)

Standards:-

• Voltage Rating: 1000 V RMS, 600 V RMS
• Operating Temperature Range: Flexing: 75°C Dry, 90°C Wet

Specifications:-

Element: Conductor(s)
• Size (AWG): 16
• No. of Conductor: 24
• Stranding: 168x38
• Conductor Material: BC - Bare Copper

Element: Ground Wire
• Size (AWG): 16
• No. of Ground Wire: 1
• Stranding: 168x38
• Conductor Material: BC - Bare Copper
• Part Number: 7129WS
