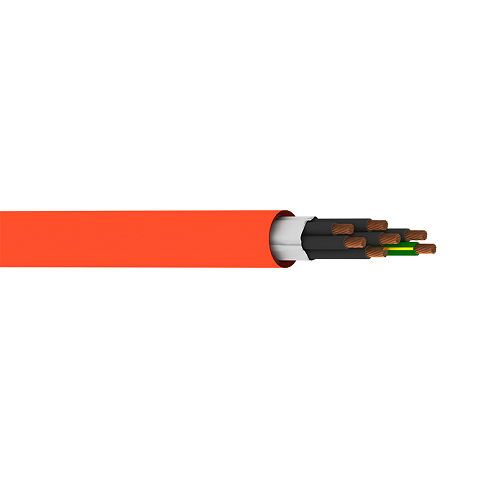

Belden 7125W 16 AWG 6 Conductor 1 Ground Wire 168x38 Stranding 600V Flex Cable

Description:-

MachFlex for High Flex, 6+1G Conductor 16 AWG (168(7x24) x38) Bare Copper, PVC-NYL Insulation, TPE Outer Jacket, 1000V WTTC, 600V TC-ER.

Insulation:-

Element: Conductor(s)
• Material: PVC/Nylon - Polyvinyl Chloride + Nylon
• Nom. Thickness: 0.021 in (0.53 mm)
• Nom. Insulation Diameter: 0.109 in (2.77 mm)

Element: Ground Wire
• Material: PVC/Nylon - Polyvinyl Chloride + Nylon
• Nom. Thickness: 0.021 in (0.53 mm)
• Nom. Insulation Diameter: 0.109 in (2.77 mm)

Outer Jacket:-

• Material: TPE - Thermoplastic Elastomer
• Nom. Thickness: 0.047 in (1.2 mm)
• Nom. Diameter: 0.46 in
• Overall Cable Diameter (Nominal): 0.46 in
• Separator: Non-woven Tape

Standards:-

• Voltage Rating: 1000 V (WTTC), 600 V (TC-ER)
• Operating Temperature Range: -40°C To 105°C

Applications:-

• Robotics, Robot, Continuous Flex

Specifications:-

Element: Conductor(s)
• Size (AWG): 16
• No. of Conductor: 6
• Stranding: 168x38
• Conductor Material: BC - Bare Copper

Element: Ground Wire
• Size (AWG): 16
• No. of Ground Wire: 1
• Stranding: 168x38
• Conductor Material: BC - Bare Copper
• Part Number: 7125W
