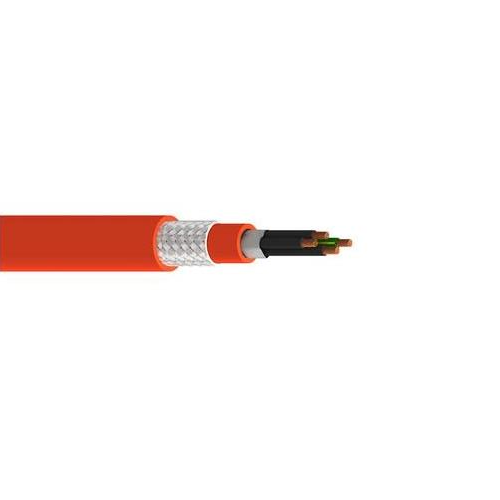

Belden 7111WS 18 AWG 3 Conductor 1 Ground Wire 105x38 Stranding 600V Flex Cable

Description:-

MachFlex for High Flex, 3+1G Conductor 18 AWG (105x38) Bare Copper, PVC-NYL Insulation, TPE Inner Jacket, TPE Outer Jacket, 1000V WTTC, 600V TC-ER.

Insulation:-

• Material: PVC/Nylon - Polyvinyl Chloride + Nylon
• Nom. Thickness: 0.089 in

Outer Shield:-

• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 85%
• Nominal Diameter: 0.297 in

Inner Jacket:-

• Material: TPE - Thermoplastic Elastomer
• Nom. Diameter: 0.269 in
• Nominal Wall Thickness: 0.025 in

Outer Jacket:-

• Material: TPE - Thermoplastic Elastomer
• Nom. Diameter: 0.391 in
• Nominal Wall Thickness: 0.047 in

Standards:-

• Voltage Rating: 1000 V RMS, 600 V RMS
• Operating Temperature Range: Flexing: -5°C To +90 °C

Specifications:-

Element: Conductor(s)
• Size (AWG): 18
• No. of Conductor: 3
• Stranding: 105x38
• Conductor Material: BC - Bare Copper

Element: Ground Wire
• Size (AWG): 18
• No. of Ground Wire: 1
• Stranding: 105x38
• Conductor Material: BC - Bare Copper
• Part Number: 7111WS
