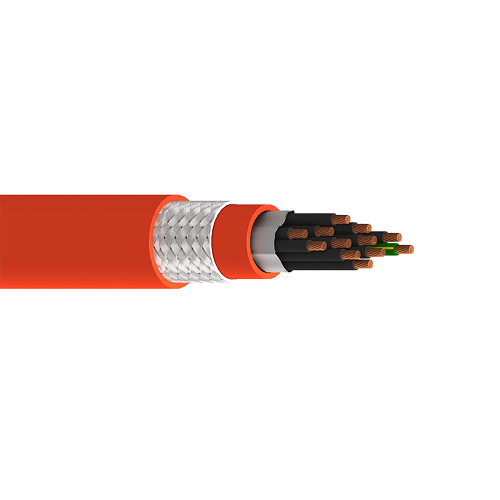

Belden 7106WS 20 AWG 11 Conductor 1 Ground Wire 74x38 Stranding 600V Flex Cable

Description:-

MachFlex for High Flex, 11+1G Conductor 20 AWG (74x38) Bare Copper, PVC Insulation, Overall Tinned Copper Braid (85%) Shield, TPE Inner Jacket, TPE Outer Jacket, PLTC.

Insulation:-

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.015 in (0.38 mm)

Outer Shield:-

• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 85%

Outer Jacket:-

• Material: TPE - Thermoplastic Elastomer
• Nom. Thickness: 0.025 in (0.64 mm)
• Nom. Diameter: 0.361 in (9.17 mm)

Standards:-

• Voltage Rating: 300 V RMS, 600 V RMS
• Operating Temperature Range: -50°C (-5°C Flexing) To 90°C

Applications:-

• Robotics, Robot, Continuous Flex

Specifications:-

Element: Conductor(s)
• Size (AWG): 20
• No. of Conductor: 11
• Stranding: 74x38
• Conductor Material: BC - Bare Copper

Element: Ground Wire
• Size (AWG): 20
• No. of Ground Wire: 1
• Stranding: 74x38
• Conductor Material: BC - Bare Copper
• Part Number: 7106WS
