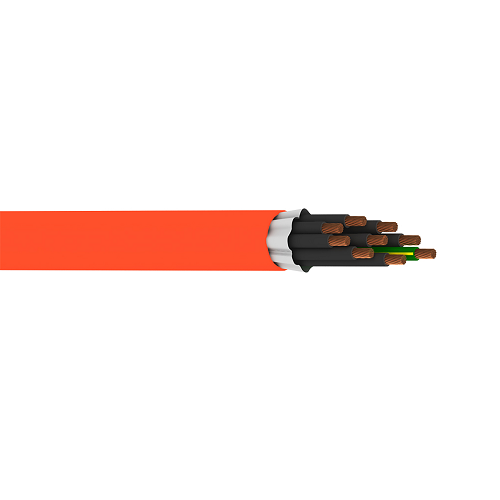

Belden 7105W 20 AWG 8 Conductor 1 Ground Wire 74x38 Stranding 600V Flex Cable

Description:-

MachFlex for High Flex, 8+1G Conductor 20 AWG (74x38) Bare Copper, PVC Insulation, TPE Outer Jacket, PLTC.

Insulation:-

Element: Conductor(s)
• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.015 in (0.38 mm)
• Nom. Insulation Diameter: 0.074 in (1.9 mm)

Element: Ground Wire
• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.015 in (0.38 mm)
• Nom. Insulation Diameter: 0.074 in (1.9 mm)

Outer Jacket:-

• Material: TPE - Thermoplastic Elastomer
• Nom. Thickness: 0.042 in (1.1 mm)
• Nom. Diameter: 0.376 in
• Overall Cable Diameter (Nominal): 0.376 in
• Separator: Non-woven Tape

Standards:-

• Voltage Rating: 600 V
• Operating Temperature Range: -40°C To 105°C

Applications:-

• Robotics, Robot, Continuous Flex

Specifications:-

Element: Conductor(s)
• Size (AWG): 20
• No. of Conductor: 8
• Stranding: 74x38
• Conductor Material: BC - Bare Copper

Element: Ground Wire
• Size (AWG): 20
• No. of Ground Wire: 1
• Stranding: 74x38
• Conductor Material: BC - Bare Copper
• Part Number: 7105W
