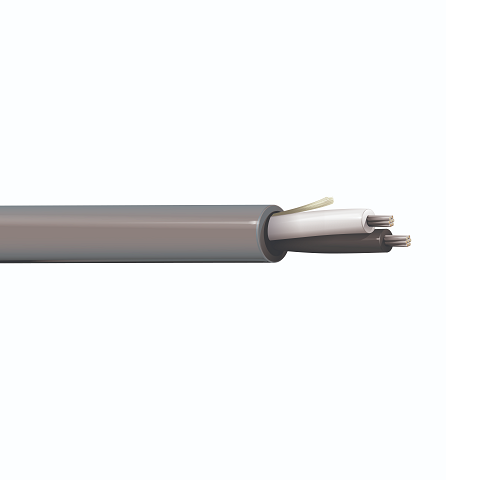

Belden 6T00UP 10 AWG 2 Conductor 65x28 Stranding Bare Copper 150V Audio Cable

Description:-

Audio Cable, Plenum-CL2P, 2-10 AWG highly flexible stranded (65x28) bare copper conductors with Flamarrest insulation, Flamarrest jacket with ripcord

Insulation:-

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.011 in (0.28 mm)
• Nom. Insulation Diameter: 0.134 in (3.40 mm)

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.017 in (0.43 mm)
• Nom. Diameter: 0.302 in (7.67 mm)
• Overall Cable Diameter (Nominal): 0.302 in (7.67 mm)

Standards:-

• UL Voltage Rating: 150 V
• Operating Temperature Range: -20°C to +75°C

Applications:-

• High Flex Audio/Speaker

Specifications:-

• Size (AWG): 10
• No. of Conductor: 2
• Stranding: 65x28
• Conductor Material: BC - Bare Copper
• Part Number: 6T00UP
