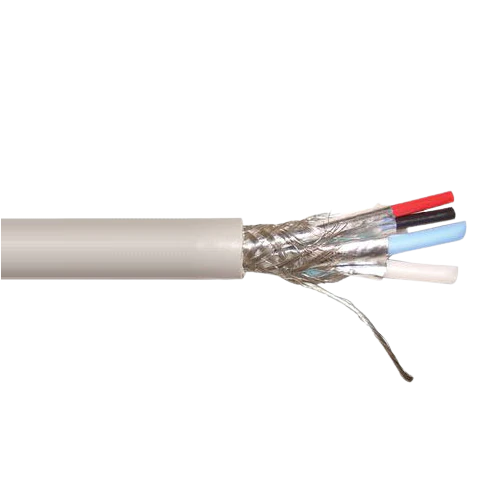

Belden 6788AV 25 AWG 6 Coax 22 AWG 2 Pair Tinned Copper Audio and Video Composite Cable

Description:-

Video Cable, 6 Coax 25 AWG solid tinned copper, foam FEP insulation, Duobond+95% tinned copper interlocked serve, Flamarrest jacket, 2 Pairs 22 AWG stranded (7x30) tinned copper, Flamarrest insulation, Beldfoil shield, drain wire, Flamarrest jacket, overall Flamarrest jacket, Plenum rated.

Temperature Range:-

• Installation Temp Range: -5°C To +75°C
• UL Temp Rating: 60°C
• Operating Temp Range: -5°C To +75°C

Applications:

RGB, Video

Specifications:-

• Size (AWG): 25
• No. of Conductor: 6
• Stranding: Solid
• Conductor Material: TC - Tinned Copper

• Size (AWG): 22
• No. of Pair: 2
• Stranding: 7x30
• Conductor Material: TC - Tinned Copper
• Part Number: 6788AV
