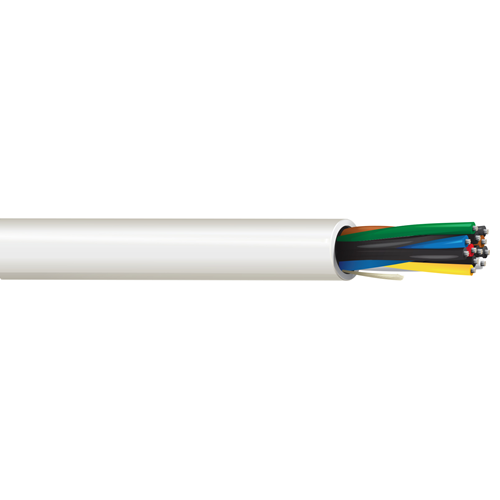

Belden 6545UE 22 AWG 6 Pair 7x30 Stranding Bare Copper 300V Security and Sound Cable

Description:

Security and Sound Cable, Plenum-CMP 6-22 AWG stranded bare copper pairs with Flamarrest insulation, Flamarrest jacket with ripcord.

Insulation

• Material: PVC - Polyvinyl Chloride
• Material Trade Name: Flamarrest
• Nominal Wall Thickness: 0.009 in (0.23 mm)

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Material Trade Name: Flamarrest
• Nom. Diameter: 0.264 in
• Nominal Wall Thickness: 0.015 in

Standards:

• Voltage Rating: 300 V RMS
• Operating Temperature: 0°C To +75°C

Applications:

• Security System, Intercom/PA, Audio/Speaker, Power-Limited Controls

Specifications:

• Size (AWG): 22
• No. of Pair: 6
• Stranding: 7x30
• Conductor Material: BC - Bare Copper
• Part Number: 6545UE
