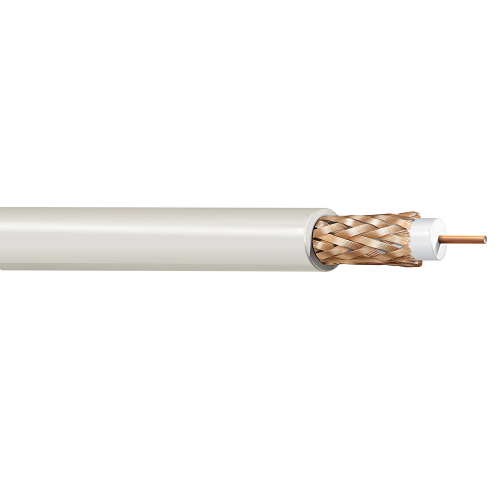

Belden 6539Y8 22 AWG 1 Conductor Solid Bare Copper Covered Steel 300V Surveillance CCTV Coax Cable

Description:-

Surveillance, CCTV, and Card Reader Cable, RG62, Plenum-CMP, 22 AWG solid bare copper-covered steel, foamed polyolefin core, 95% bare copper braid, Flamarrest jacket.

Insulation:-

• Material: FEP - Fluorinated Ethylene Propylene (Foam)
• Nom. Insulation Diameter: 0.146 in (3.71 mm)

Outer Shield:-

• Shield Type: Braid
• Material: Bare Copper (BC)
• Coverage: 95%

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.204 in

Standards:-

• UL Voltage Rating: 300 V RMS
• Nom. Characteristic Impedance: 93 Ohm
• Operating Temperature Range: 0°C To +75°C

Applications:-

• Surveillance, CCTV Camera, Card Reader/Sensor

Specifications:-

• Size (AWG): 22
• No. of Conductor: 1
• Stranding: Solid
• Nom. Diameter: 0.025 in
• RG Type: 62
• Conductor Material: BCCS - Bare Copper Covered Steel
• Part Number: 6539Y8
