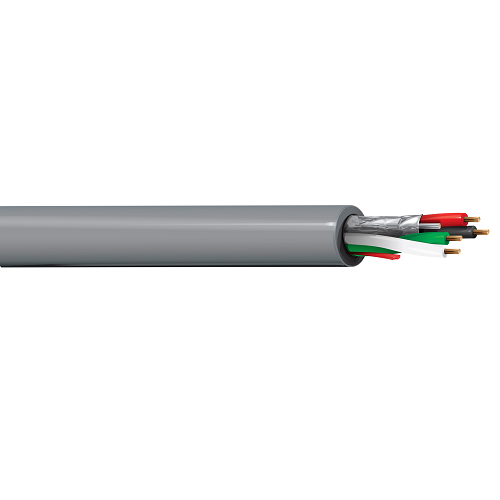

Belden 6502GE 22 AWG 1 Pair 2 Conductor 7x30 Stranding Bare Copper 300V Security and Sound Cable

Description:-

Security and Sound Cable, Plenum-CMP, 1-22 AWG stranded bare copper pair with Flamarrest insulation and Beldfoil shield, 2-22 AWG stranded bare copper conductors with insulation, overall Flamarrest jacket with ripcord

Insulation:-

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.009 in (0.23 mm)
• Nom. Insulation Diameter: 0.047 in (1.2 mm)

Inner Shield:-

Element: Pair
• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 16 AWG (7x24) TC - Tinned Copper

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.015 in (0.38 mm)
• Nom. Diameter: 0.155 in (3.94 mm)

Standards:-

• UL Voltage Rating: 300 V

Applications:-

• Security System, Intercom/PA, Audio/Speaker, Power-Limited Controls, Noisy Environment

Specifications:-

• Size (AWG): 22
• No. of Pair: 1
• Stranding: 7x30
• Conductor Material: BC - Bare Copper

• Size (AWG): 22
• No. of Conductor: 2
• Stranding: 7x30
• Conductor Material: BC - Bare Copper
• Part Number: 6502GE
