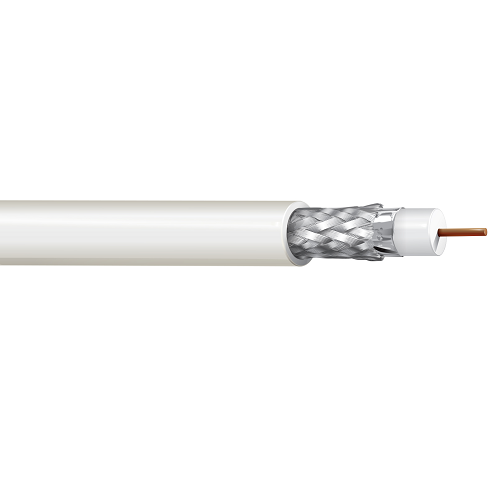

Belden 6439C8 20 AWG 1 Conductor Solid Bare Copper 300V Surveillance Coax Cable

Description:-

Surveillance, CATV and MATV Cable, RG59, Plenum-CMP and CATVP, 20 AWG solid bare copper, foam FEP core, Duofoil + 90% aluminum braid, Flamarrest jacket.

Insulation:-

• Material: FEP - Fluorinated Ethylene Propylene (Foam)
• Nominal Diameter: 0.133 in

Outer Shield:-

• Layer: 1
• Shield Type: Tape
• Material: Tri-Laminate (Alum+Poly+Alum)
• Coverage: 100%
• Material Trade Name: Duofoil

• Layer: 2
• Shield Type: Braid
• Material: Aluminum
• Coverage: 90%

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Material Trade Name: Flamarrest
• Nom. Diameter: 0.199 in

Standards:-

• UL Voltage Rating: 300 V RMS
• Nominal Characteristic Impedance: 75 Ohm
• Operating Temperature Range: 0°C To +75°C

Applications:-

• CATV, MATV

Specifications:-

• Size (AWG): 20
• No. of Conductor: 1
• Stranding: Solid
• RG Type: 59
• Nominal Diameter: 0.032 in
• Conductor Material: BC - Bare Copper
• Part Number: 6439C8
