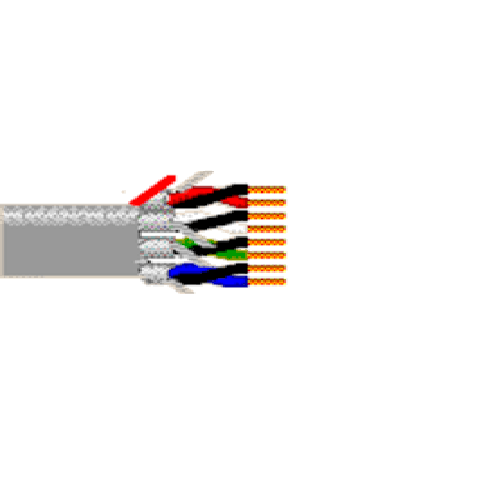

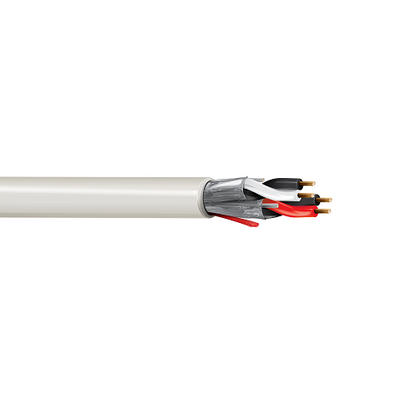

Belden 6345PC 18 AWG 6 Pair 7x26 Stranding Bare Copper 300V Security and Sound Cable

Description:-

Security, Pro Audio and Intercom Cable, 6 Pair 18 AWG stranded (7x26) bare copper pairs with FEP insulation, Individually Beldfoil shielded, Plenum, Flamarrest jacket.

Insulation:-

• Material: FEP - Fluorinated Ethylene Propylene
• Nom. Thickness: 0.0095 in (0.24 mm)
• Nom. Insulation Diameter: 0.0655 in (1.66 mm)

Inner Shield:-

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 24 AWG (7x32) TC - Tinned Copper

Outer Jacket:-

• Material: FEP - Fluorinated Ethylene Propylene
• Nom. Thickness: 0.019 in (0.48 mm)
• Nom. Diameter: 0.402 in
• Overall Cable Diameter (Nominal): 0.402 in

Standards:-

• UL Voltage Rating: 300 V
• Operating Temperature Range: -20°C To +75°C

Specifications:-

• Size (AWG): 18
• No. of Pairs: 6
• Stranding: 7x26
• Conductor Material: BC - Bare Copper
• Part Number: 6345PC
