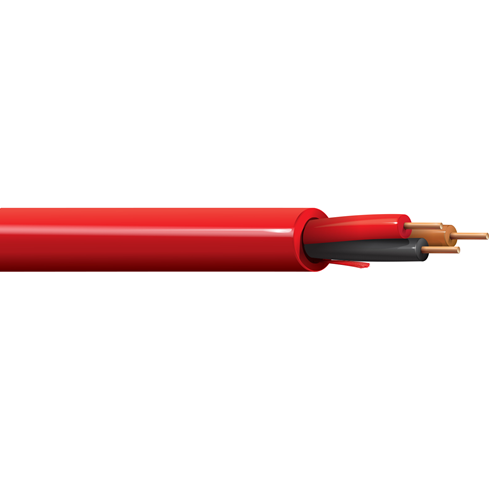

Belden 6321UL 18 AWG 3 Conductor Solid Bare Copper 300V Fire Alarm Cable

Belden 6321UL 18 AWG 3 Conductor Solid Bare Copper 300V Fire Alarm Cable

SKU: NES6321UL   Download PDF

Select a gauge:
  • Belden 6321UL 18 AWG 3 Conductor Solid Bare Copper 300V Fire Alarm Cable
Length: FT
Enter footage in the box - Cut to one length. Min 1 ft - Max 10000 ft.
Now $0.28 /FT   Web pricing policy
BEFORE   Now $0.28 /FT Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Belden 6321UL 18 AWG 3 Conductor Solid Bare Copper 300V Fire Alarm Cable

Description:

Fire Alarm Cable, Plenum-FPLP, 3-18 AWG solid bare copper conductors with Flamarrest insulation, Flamarrest jacket with ripcord.

Insulation:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.01 in (0.25 mm)
• Nom. Insulation Diameter: 0.061 in (1.5 mm)

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.015 in (0.38 mm)
• Nom. Diameter: 0.16 in
• Overall Cable Diameter (Nominal): 0.16 in

Standards:

• Voltage Rating: 300 V
• Operating Temperature: 0°C to +75°C

Applications:

• Fire Alarm, Monitor/Detection, Circuits: Audio, Control, Initiating, Notification

Specifications:

• Size (AWG): 18
• No. of Conductor: 3
• Stranding: Solid
• Conductor Material: BC - Bare Copper
• Part Number: 6321UL
