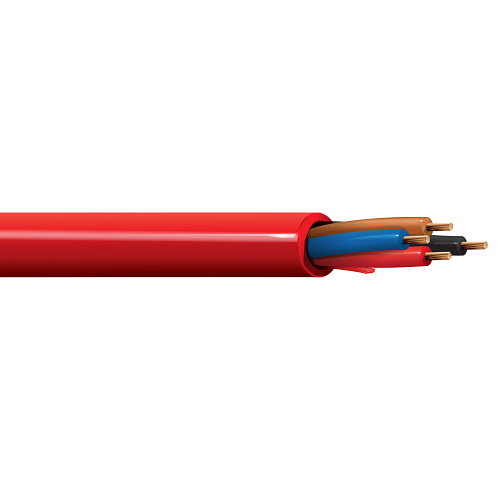

Belden 6302UL 18 AWG 4 Conductor 7x26 Stranding Bare Copper 300V Fire Alarm Cable

Description:

Fire Alarm Cable, Plenum-FPLP, 4-18 AWG stranded bare copper conductors with Flamarrest insulation, Flamarrest jacket with ripcord.

Insulation:-

• Material: PVC - Polyvinyl Chloride
• Nominal Wall Thickness: 0.009 in
• Material Trade Name: Flamarrest

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.185 in
• Nominal Wall Thickness: 0.015 in
• Material Trade Name: Flamarrest

Standards:-

• UL Voltage Rating: 300 V RMS
• Operating Temperature Range: 0°C To +75°C

Applications:-

• Fire Alarm, Monitor/Detection, Circuits: Audio, Control, Initiating, Notification

Specifications:-

• Size (AWG): 18
• No. of Conductor: 4
• Stranding: 7x26
• Conductor Material: BC - Bare Copper
• Part Number: 6302UL
