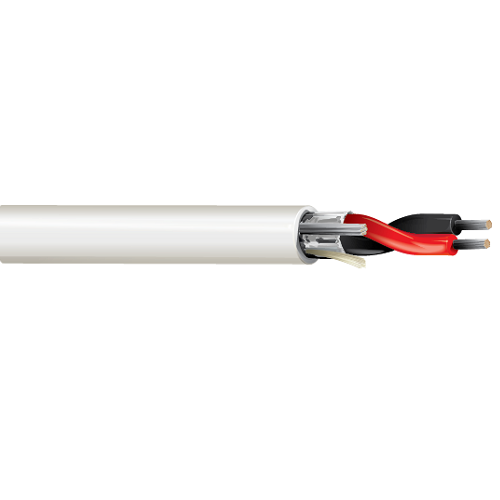

Belden 6300FH 18 AWG 2 Conductor 7x26 Stranding Tinned Copper 300V Security and Sound Cable

Description:-

Security and Commercial Audio Cable, 2 Conductor 18 AWG stranded (7x26) tinned copper conductors with Flamarrest insulation, Beldfoil shield, Plenum, Flamarrest jacket with ripcord.

Insulation:-

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.009 in (0.23 mm)
• Nom. Insulation Diameter: 0.064 in (1.6 mm)

Outer Shield:-

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 24 AWG (Solid) TC - Tinned Copper

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.015 in (0.38 mm)
• Nom. Diameter: 0.162 in
• Overall Cable Diameter (Nominal): 0.162 in

Standards:-

• UL Voltage Rating: 300 V
• Operating Temperature Range: -20°C To +75°C

Applications:-

• Security Systems, Intercom/PA Systems, Sound/Audio Systems, Power Limited Controls

Specifications:-

• Size (AWG): 18
• No. of Conductors: 2
• Stranding: 7x26
• Conductor Material: TC - Tinned Copper
• Part Number: 6300FH
