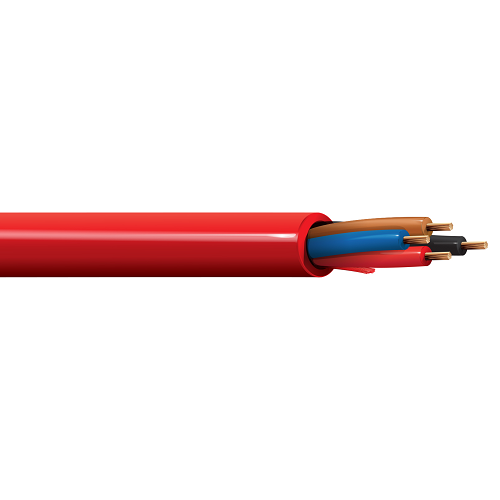

Belden 6202UL 16 AWG 4 Conductor 19x29 Stranding Bare Copper 300V Fire Alarm Cable

Description:-

Fire Alarm Cable, Plenum-FPLP, 4-16 AWG stranded bare copper conductors with Flamarrest insulation, Flamarrest jacket with ripcord

Insulation:-

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.009 in (0.23 mm)
• Nom. Insulation Diameter: 0.075 in (1.9 mm)

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.015 in (0.38 mm)
• Nom. Diameter: 0.211 in
• Overall Cable Diameter (Nominal): 0.211 in

Standards:-

• UL Voltage Rating: 300 V
• Operating Temperature Range: 0°C to +75°C

Applications:-

• Fire Alarm, Monitor/Detection, Circuits: Audio, Control, Initiating, Notification

Specifications:-

• Size (AWG): 16
• No. of Conductor: 4
• Stranding: 19x29
• Conductor Material: BC - Bare Copper
• Part Number: 6202UL
