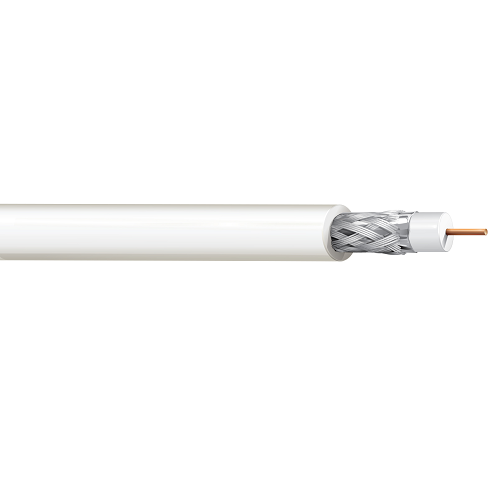

Belden 6139B8 14 AWG 1 Conductor Solid Bare Copper 300V Surveillance Coax Cable

Description:-

Surveillance, CATV and MATV, RG-11, 14 AWG solid bare copper, foam FEP core, Duofoil + 60% aluminum braid, PVDF jacket, CMP, CATVP.

Insulation:-

• Material: FEP - Fluorinated Ethylene Propylene (Foam)
• Nom. Insulation Diameter: 0.274 in (6.96 mm)

Outer Shield:-

• Layer: 1
• Shield Type: Tape
• Material: Tri-Laminate (Alum+Poly+Alum)
• Coverage: 100%
• Material Trade Name: Duofoil

• Layer: 2
• Shield Type: Braid
• Material: Aluminum
• Coverage: 60%

Outer Jacket:-

• Material: PVDF - Polyvinylidene Fluoride
• Nom. Diameter: 0.348 in (8.84 mm)
• Overall Cable Diameter (Nominal): 0.348 in (8.84 mm)

Standards:-

• UL Voltage Rating: 300 V (CMP)
• Nom. Characteristic Impedance: 75 Ohm
• Operating Temperature Range: -20°C to +150°C

Applications:-

• CATV, MATV

Specifications:-

• Size (AWG): 14
• No. of Conductor: 1
• Stranding: Solid
• RG Type: 11
• Nom. Diameter: 0.064 in
• Conductor Material: BC - Bare Copper
• Part Number: 6139B8
