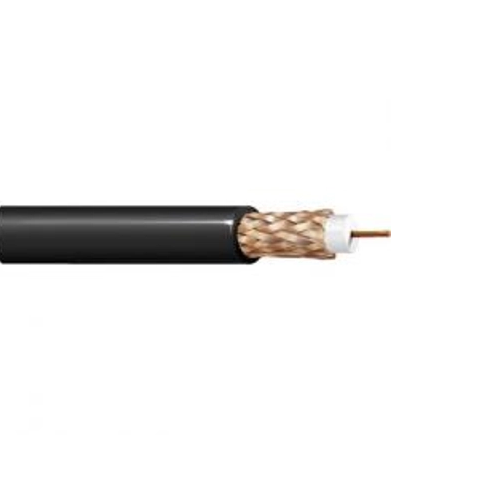

Belden 613948 14 AWG 1 Conductor Solid Bare Copper 300V Surveillance CCTV Coax Cable

Description:-

Surveillance and CCTV Cable, RG11, Plenum-CMP, 14 AWG solid bare copper, foam FEP core, 95% bare copper braid, PVDF.

Insulation:-

• Material: FEP - Fluorinated Ethylene Propylene (Foam)
• Nominal Diameter: 0.274 in

Outer Shield:-

• Shield Type: Braid
• Material: Bare Copper (BC)
• Coverage: 95%

Outer Jacket:-

• Material: PVDF - Polyvinylidene Fluoride
• Nom. Diameter: 0.348 in

Standards:-

• UL Voltage Rating: 300 V RMS
• Nominal Characteristic Impedance: 75 Ohm
• Operating Temperature Range: -20°C To +125°C

Applications:-

• Surveillance, CCTV Camera

Specifications:-

• Size (AWG): 14
• No. of Conductor: 1
• Stranding: Solid
• RG Type: 11
• Nominal Diameter: 0.064 in
• Conductor Material: BC - Bare Copper
• Part Number: 613948
