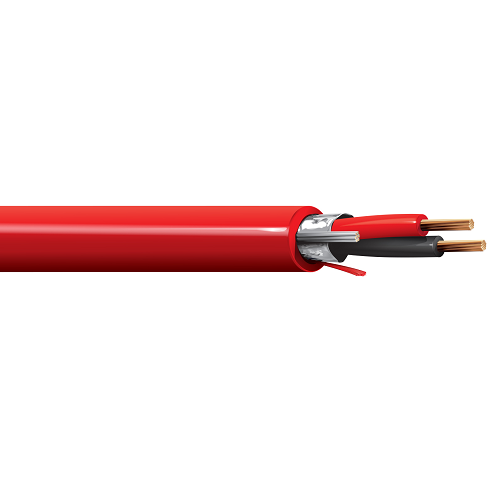

Belden 6000FL 12 AWG 2 Conductor 19x25 Stranding Bare Copper 300V Security and Sound Cable

Description:-

Security and Sound Cable, Plenum-FPLP, 2-12 AWG stranded bare copper conductors with Flamarrest insulation, Beldfoil shield, and Flamarrest jacket with ripcord

Insulation:-

• Material: PVC - Polyvinyl Chloride
• Nominal Wall Thickness: 0.011 in
• Material Trade Name: Flamarrest

Outer Shield:-

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Material Trade Name: Beldfoil
• Drainwire Type: 20 AWG TC - Tinned Copper

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.260 in
• Overall Cable Diameter (Nominal): 0.015 in

Standards:-

• UL Voltage Rating: 300 V RMS
• Operating Temperature Range: 0°C to +75°C

Applications:-

• Fire Alarm, Monitor/Detection, Circuits: Audio, Control, Initiating, Notification, Noisy Environment

Specifications:-

• Size (AWG): 12
• No. of Conductor: 2
• Stranding: 19x25
• Conductor Material: BC - Bare Copper
• Part Number: 6000FL
